Product Overview
Description

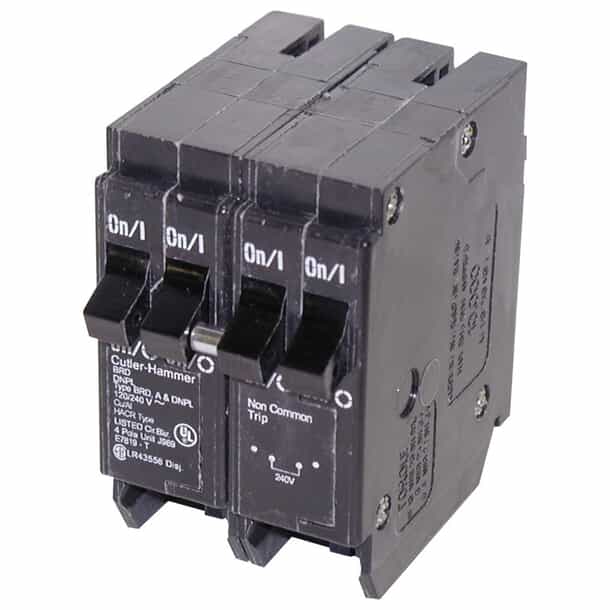

DNPL type circuit breaker with voltage rating of 120 VAC, 120/240 VAC, 120 VAC and current rating of 15-15-15 A has 1 (outer Left), 2 (center), 1 (outer right) poles. Plug-in styled mounting has 10,000 A Interrupting Current Rating of. Wire Size Range is #14 - 4 AWG. All 15 and 20 A single pole are switch-duty rated.
- DNPL breakers will fit panels built by Challenger PL/PM/PMF, Westinghouse, GL, GLC, WL, WIB, Novaline and Cutler-Hammer CPL/CPM
- Space-saving breaker
- 2 x 1 Pole, 15 A and 1 x 2 Pole, 15 A
- Type DNPL breakers, 1/2" per pole
- CSA and UL listed
- One-piece moulded case construction
- Magnetic assembly for reliable short-circuit protection
- 10,000 A/C
- 1P/2P/1P
- 15/15/15 AMP
- 3" x 2" x 3"
Our Return Policy
If you are not completely satisfied with your purchase, in most cases, you can return it for a refund within 90 days.
Lumber, Building Materials, Furniture and Major Appliances return policies are subject to your local store.
Learn MoreSpecifications
Brand | EATON |
---|---|
Model | DNPL151515 |
Assembled Product Length | 3" |
Assembled Product Height | 3" |
Amps | 15 |
Assembled Product Width | 2" |
Package Weight | 0.74 lbs |
Package Length | 3.00 in |
Package Width | 3.10 in |
Package Height | 1.90 in |
