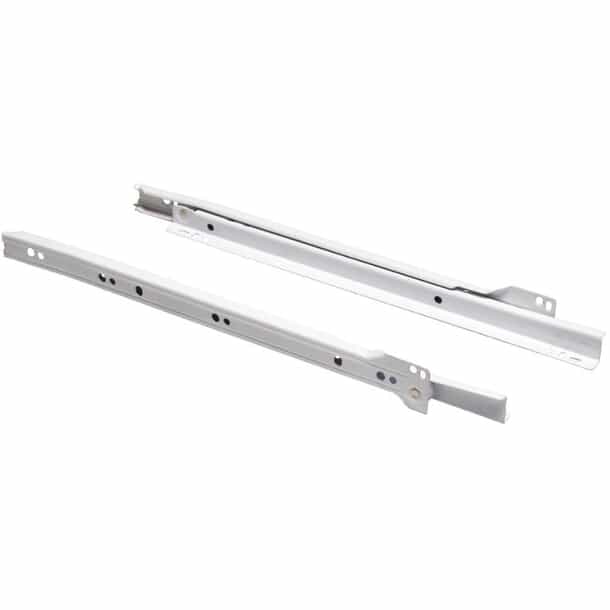

Product Overview
- 14" slide size
- Medium duty slide designed for use in kitchen cabinets, home office, RTA furniture, and millwork applictions
- Adaptable to face frame or 32mm mounting
- Single capture roller limits side play for improved lateral stability
- Positive double out-stop, positive in-stop
- Lift out disconnect
- Four adjustment slots
- Positive lock-open position
- Self closing
- Includes screws and instructions
- Cabinet member side mounts
- Additional rear socket
- Drawer member fastens to either side or bottom of drawer
- 75 pound class load rating (BHMA and KCMA applications)
- Clearance: side - 1/2" plus 1/32" minus 0" tolerance, top - 1" required for drawer lift out, bottom - none, slide can rest on cabinet
Info & Guides
Specifications
| Brand | KNAPE & VOGT |
| Colour Family | WHITE |
| Finish | N/A |
| Assembled Product Length | 14" |
| Dimensions: | 14.400in x 3.800 in x 1.400 in |
