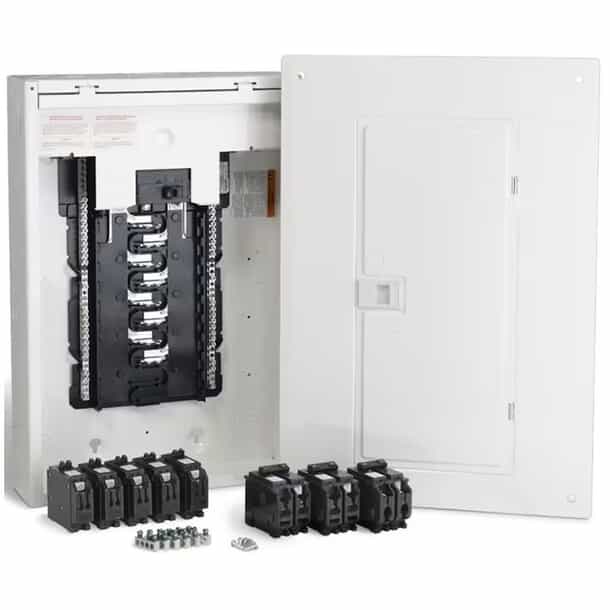

SCHNEIDER ELECTRIC Homeline 100 Amp 16/32 Circuit Retrofit Panel Package with Breakers

Easy and fast to install, this HomeLine panel combines a service entrance loadcentre with a selection of breakers. This panel offers speed and safety features such as straight-in main breaker wiring on all residential loadcentres, painted architectural white finish for no sharp edges, drywall markers for accurate installation, and a shielded bus design which minimizes the exposed bus and reduces chance of incidental contact. Breakers Included: 5 - 1Pole 15A Tandems (Space Savers), 1 - 2Pole 15A, 1 - 2Pole 30A, 1 - 2Pole 40A. Distributed neutral with backed out screws reduces clutter and simplifies wiring. Multiple horizontal ground bar mounting locations (left, right and bottom) let you pick the easiest spot to wire. Complete with latch door on the trim. CSA approved for vertical, horizontal or inverted mounting and suitable for Al/Cu conductors. Number of circuits: 16/32. Measures 20.92"h x 14.25"w x 3.75"d.

• The Homeline plug-on neutral panel package combines a service entrance loadcentre, 100 Amp factory installed main breaker and a selection of breakers
• Breakers included: 5 - 1 pole 15A tandems (space savers), 1 - 2 pole 15A, 1 - 2 pole 30A, 1 - 2 pole 40A
• CSA approved for vertical, horizontal or inverted mounting and suitable for Al/Cu conductors
• Multiple horizontal ground bar mounting locations (left, right and bottom) let you pick the easiest spot to wire
• Complete with latch door on the trim
• Expandable loadcentre capacity with the use of space saver (tandem) breakers
• Cover features a floating, spring-mounted trim providing automatic adjustment, ensures proper alignment without manual adjustment
• Easy and fast to install - Offers speed and safety features such as, straight-in main breaker wiring on all residential loadcentres, painted architectural white finish for no sharp edges, drywall markers for accurate installation and a shielded bus design which minimizes the exposed bus and reduces chance of incidental contact
• Also use Qwik-Open circuit breakers - 1 phase, 3 wire, 120/240VAC
• Distributed neutral reduces clutter and simplifies wiring
• Number of circuits: 16/32

DIMENSIONS:

• 20.92" H x 14.25" W x 3.75" D
