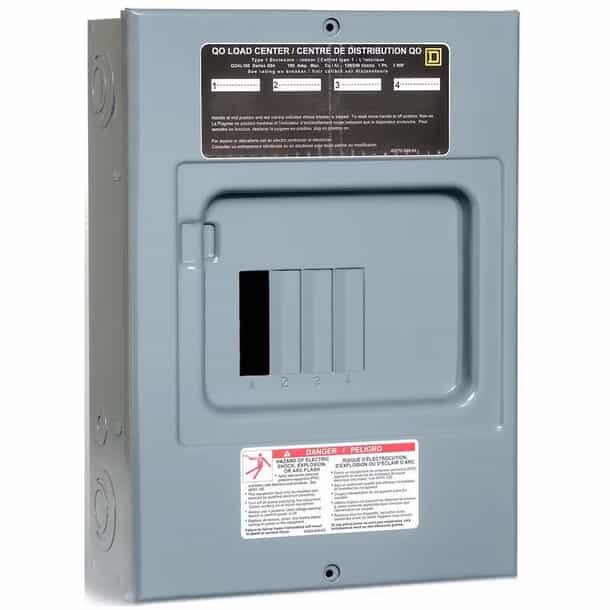

SCHNEIDER ELECTRIC Square D 4 Circuit Surface Mount Loadcentre

This loadcentre is for use as a secondary or add-on panel when more spaces for circuits are needed or when a main disconnect is not required. It is rated indoor; 100 Amp; 120/240V AC; 10,000 AIC. It measures 12.75"H x 9"W x 3.75"D.

• 1 phase, 3 wire - 4 spaces, expandable to 8 circuits maximum with the use of QO Tandem breakers
• Type 1 indoor enclosure with surface mounted trim and no door
• CSA approved for vertical, horizontal or inverted mounting
• Accepts aluminum or copper conductors
• Main wire size - AWG/kcmil Al/Cu: #8-1
• CSA approved to only accept Canadian Square D QO circuit breakers
• For use as a secondary or add-on panel when more spaces for circuits are needed or when a main disconnect is not required
• 100 Amp
• 120/240V AC
• 10,000 AIC

DIMENSIONS:

• 12.75"H x 9"W x 3.75"D
